Feed-Through

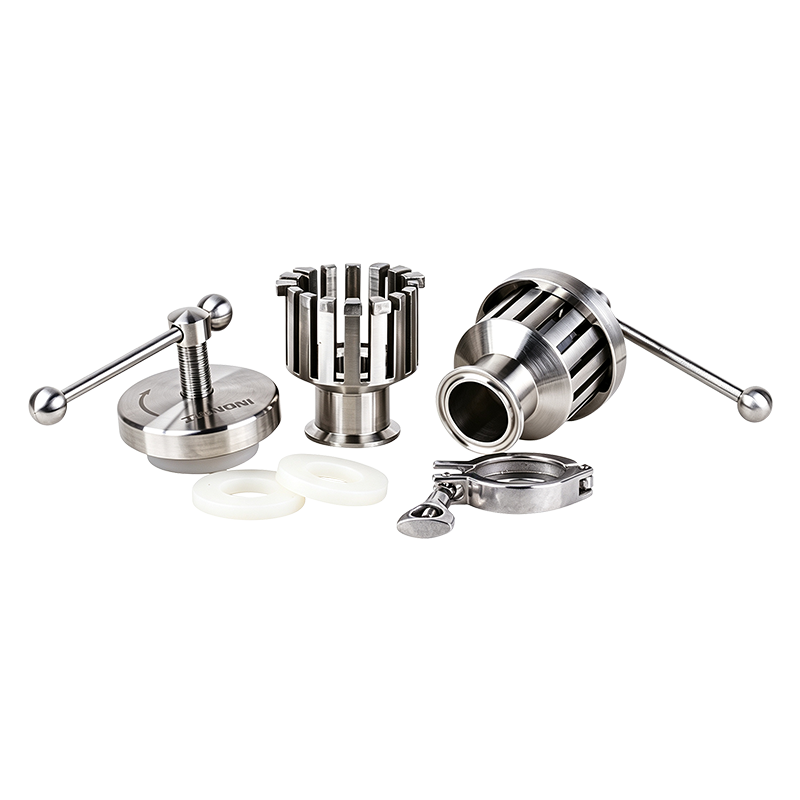

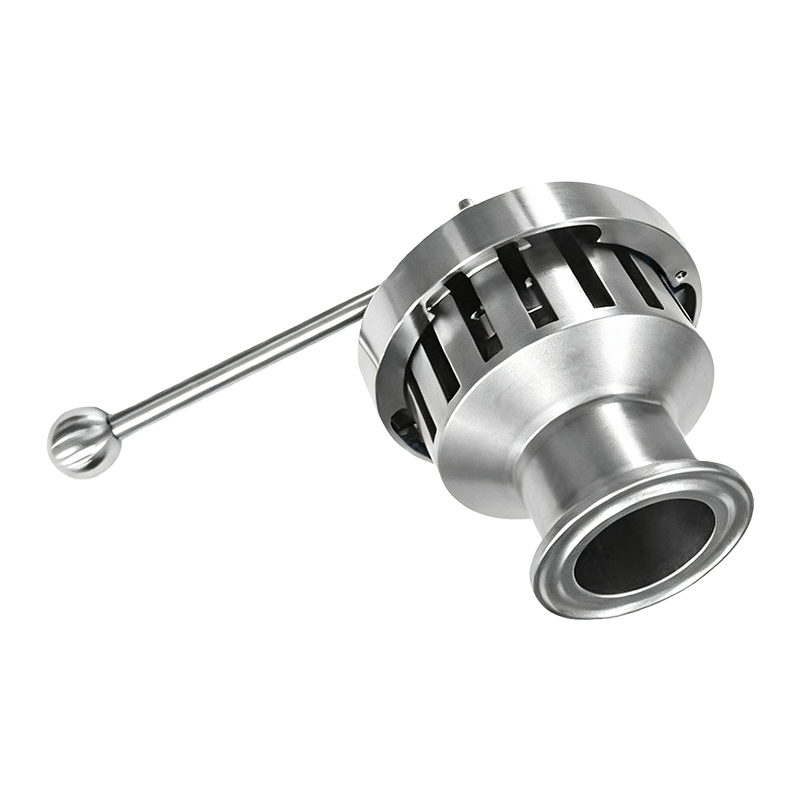

A device providing sealing when sensors enter high-temperature pressure equipment.
- Maximum number of leads: 32
- 316L stainless steel, robust and durable
- Safe, reliable, easy to operate

Availability:

Quantity:



Inquire Add to Basket

Product Description

Number of slots: 16

Maximum leads: 32

Sealing material: Silicone

Pressure resistance: -100 kPa to 400 kPa G

Operating temperature: -60℃ to 200℃

Flange diameter: 50.5 mm

Dimensions (max diameter × height): Φ84 × 104 mm

Material: 316L stainless steel

Weight: 1455 g

Feed-Through
